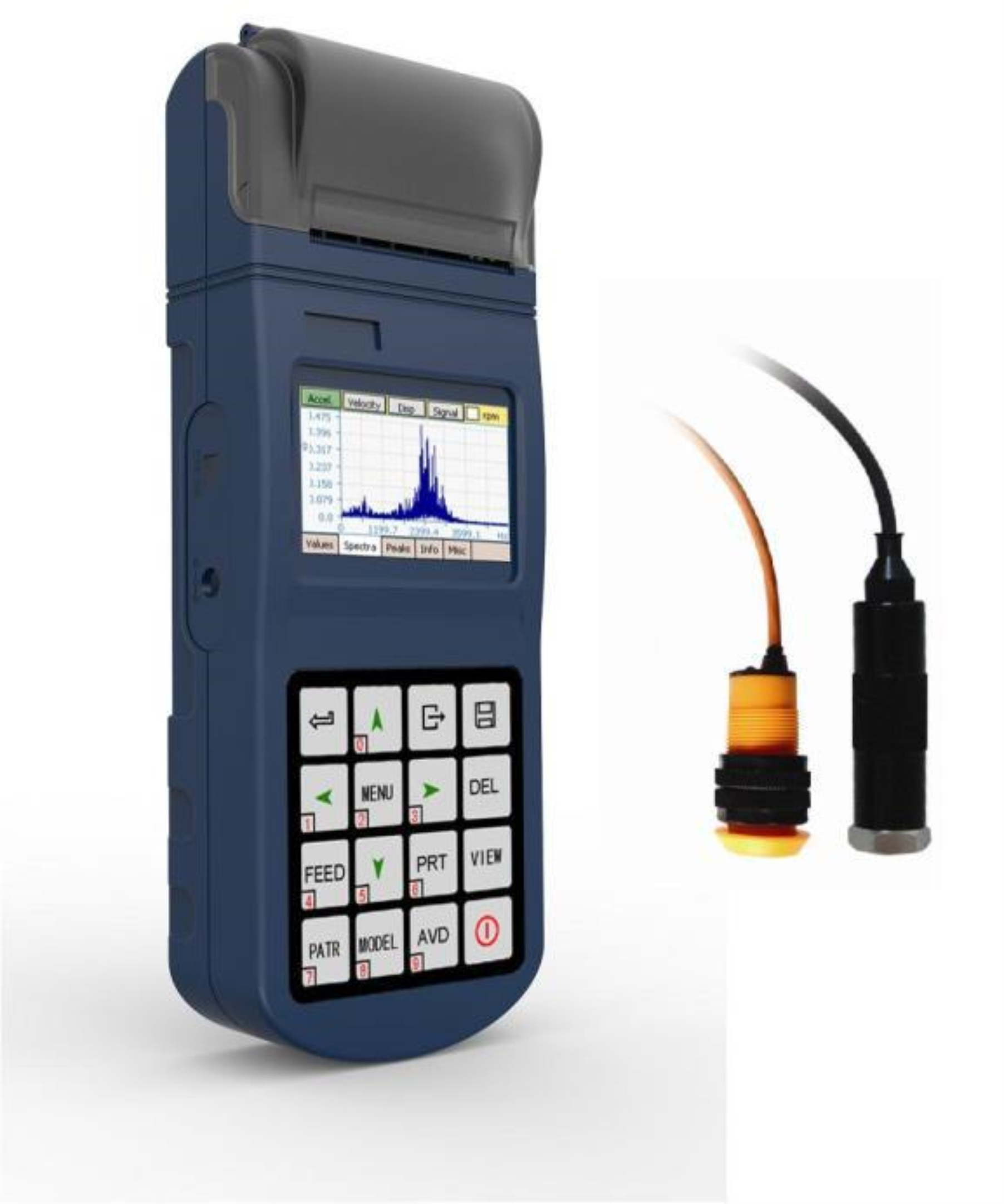

Portable Vibration Meter TMV500 - Image 2

TMV500 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Then by analyzing input signal, results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also for rotational speed measuring.
The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), but also perform simple failure diagnosis.
The technical specifications of TMV500 comply with the requirements of GB 13823.3. TMV500 is widely used in machinery, power, metallurgy, automobile and other industrial fields.

Kategoriler: ,

Configuration

NO. Item Quantity
1 Main unit 1
Power Adapters
(input:220V/50Hz  output:9V/1000mA)
2 ， Choose one
Power Adapters
Standard (input:110V/50Hz，output:9V/1000mA)
configuration
3 Piezoelectric sensors 1
4 Magnetic seat (with 2 bolts) 1
5 Manual 1
6 Package case 1
1 Speed transducer (Lacer) 1

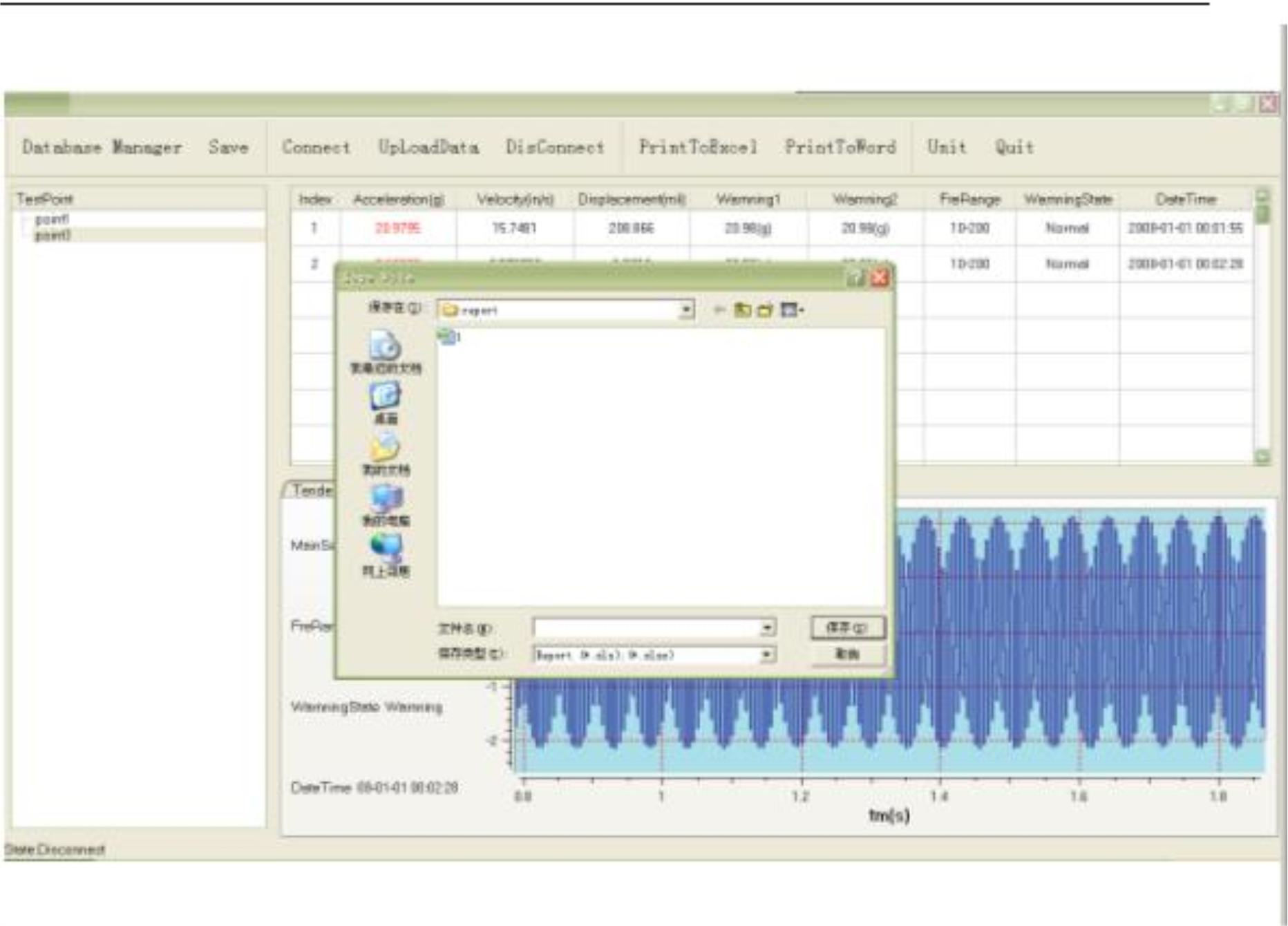

Optional 2 Software 1
configuration
3 Probe 1
4 Communication cable 1

Specifications

TMV500 TV300
Acce: 0.1 ~ 205.6 m/s2(peak) Acce: 0.1 ~ 392.0 m/s2(peak)
Testing range
(Metric) Velo: 0.1 ~ 400.0 mm/s(RMS) Velo: 0.01 ~ 80.00 cm/s(RMS)
Disp: 0.001 ~ 9.0 mm(peak-peak) Disp: 0.001 ~ 18.1 mm(peak-peak)
Testing range Acce: 0.01 ~ 20.98 g(peak)
Velo: 0.01 ~ 15.75 in/s(RMS) No
(Imperial)
Disp: 0.1 ~ 354.3 mil(peak-peak)
Freq range Acceleration: 10Hz ~ 200Hz, 10Hz ~ 500Hz,
10Hz ~ 1KHz, 10Hz ~ 10KHz
Velocity: 10Hz ~ 1KHz
Displacement: 10Hz ~ 500Hz
Frequency 0.25Hz
resolution
100 × 80 pieces of data and 25 × 62 pieces of data and
Data memory
100 spectrums 25 spectrums
Software Yes
Temp 0℃ ~ 40℃
Tolerance ±5%
Speed measuring 30 ~ 300000 rpm
range
corresponding to 0.5 ~ 5000Hz
Measuring distance 0.15 ~ 1m  No
TFT LCD with backlight
Display
320×200 pixels with RGB 320×200 pixels
Data interface USB RS232
Overall dimensions 212×80×35 171×78.5×28
Printer Integrated thermal printer External
Weight 320g 230g
Battery Rechargeable Li battery,1500mAh Rechargeable Li Battery,1000
Continuous working About 50h About 20h
time
