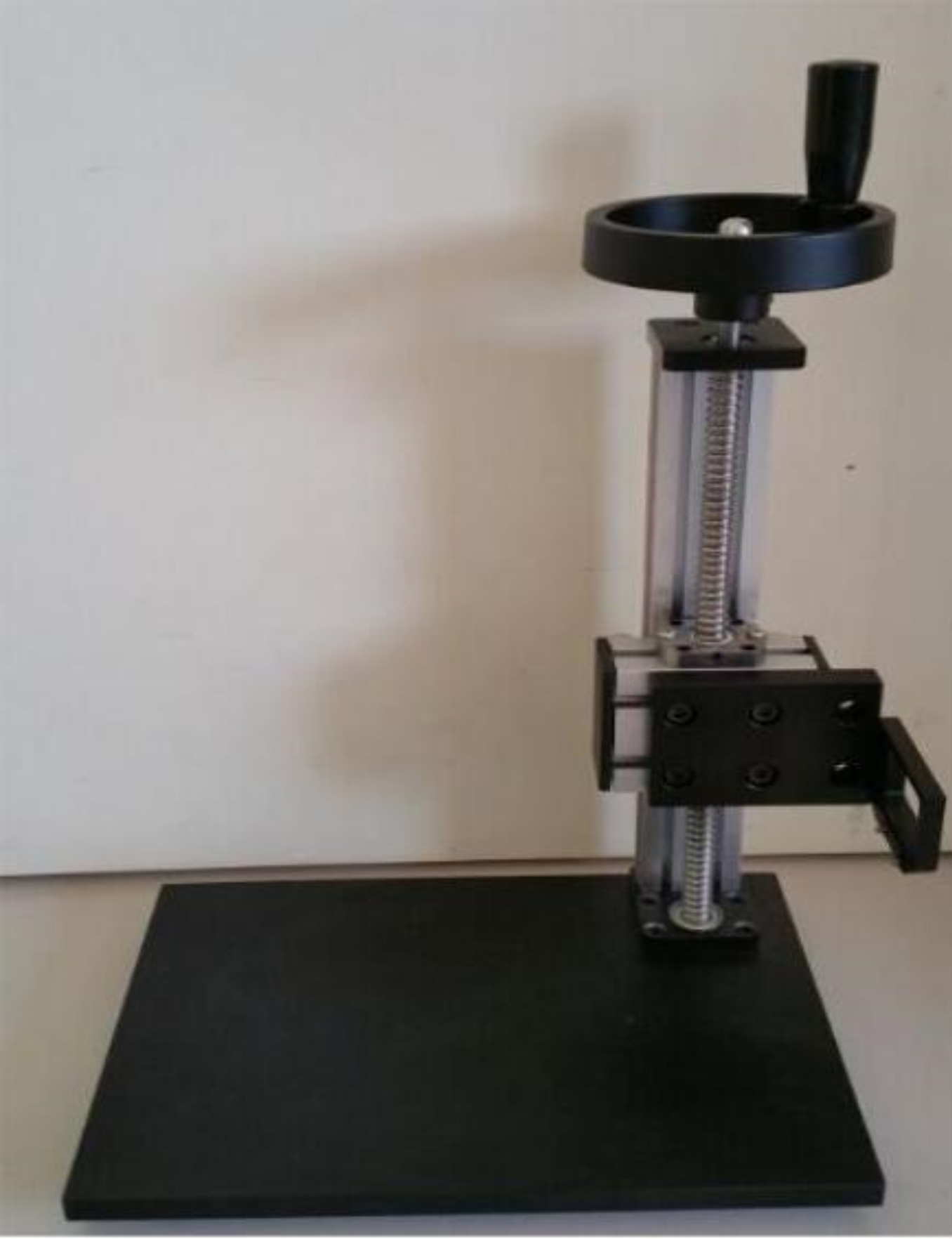

The Performance Index Of Sensor
| The detection principle |
Current induction |
| Measuring range |
160 μm |
| Tip radius |
5 μm |
| Tip material |
Diamond |
| Stylus force |
4mN(0.4gf) |
| Stylus angle |
90° |
| The guide head vertical radius |
45mm |
Technical Parameters
|
Item |
Description |
|
|
|
|
|
|
The maximum driving trip |
17.5mm/0.7inch |
|
|
|
|
|
|
Indicating error |
Not more than ± 10% |
|
|
|
|
|
|
Variation of indication |
Not more than 6% |
|
|
|
|
|
|
The measured profile |
Roughness, waviness, the original contour |
|
|
|
|
|
|
Parameter |
Ra （ 0.005μm ~ 16μm ） ,Rz（ 0.02μm ~ |
|
|
|
160μm）,Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, |
|
|
|
Rsk, Rku, Rsm, Rmr, Rx. |
|
|
|
|
|
|
Filter |
RC,PCRC,Gauss,ISO13565 |
|
|
|
|
|
|
The sampling length L |
0.25mm,0.8mm,2.5mm,8mm |
|
|
|
|
|
|
Evaluation length L |
(1-5)l |
|
|
|
|
|
|
Internal storage capacity |
100 groups of original data |
|
|
|
|
|
|
External input / output interface |
USB |
|
|
|
|
|
|
Electric source |
Built-in rechargeable lithium ion battery or |
|
|
|
external power adapter |
|
|
|
|
|
Outline Dimension
143 x 55 x 42mm (host).
Weight: about 0.KG (host).
