FEATURES
Pocket-size & economically price
Useing the high speed microprocessor DSP;
Using the OLED screen,bright and without visual angle
Data ourput USB port
Large measuring range suitable for most materials
Measures flat, outer cylinder and sloping surface
Both Ra and Rz parameters in one insrument
Works on 3.7v rechargeable lithium-battery work while charging
Real time battery indicator
Technical Specifications
| Roughness parameter | Ra,Rz,Rq,Rt |
| Tracing length | 6mm |
| Tracing speed | 1.0mm/sec |
| Cut-off lengths | 0.25mm/0.8mm/2.5mm |
| Evaluation length | 1.25mm/4.0mm |
| Measuring range | Ra: 0.05-10.0μm Rz: 0.1-50μm |
| Accuracy | ±5% |
| Repeatability | <12% |
| Radius and angle of the stylus point | Diamond,Radius : 10μm±1μm |
| Angle: 90°(+5°or -10°) | |
| Power supply | 3.7V Li-ion battery |
| Recharging time | 3 hours |
| Operating temperature | -20-40 ℃ |
| Relative humidity | <90% |
| Dimensions (L×W×H) | 106×70×24mm |
| Weight | 200g |
Standard delivery

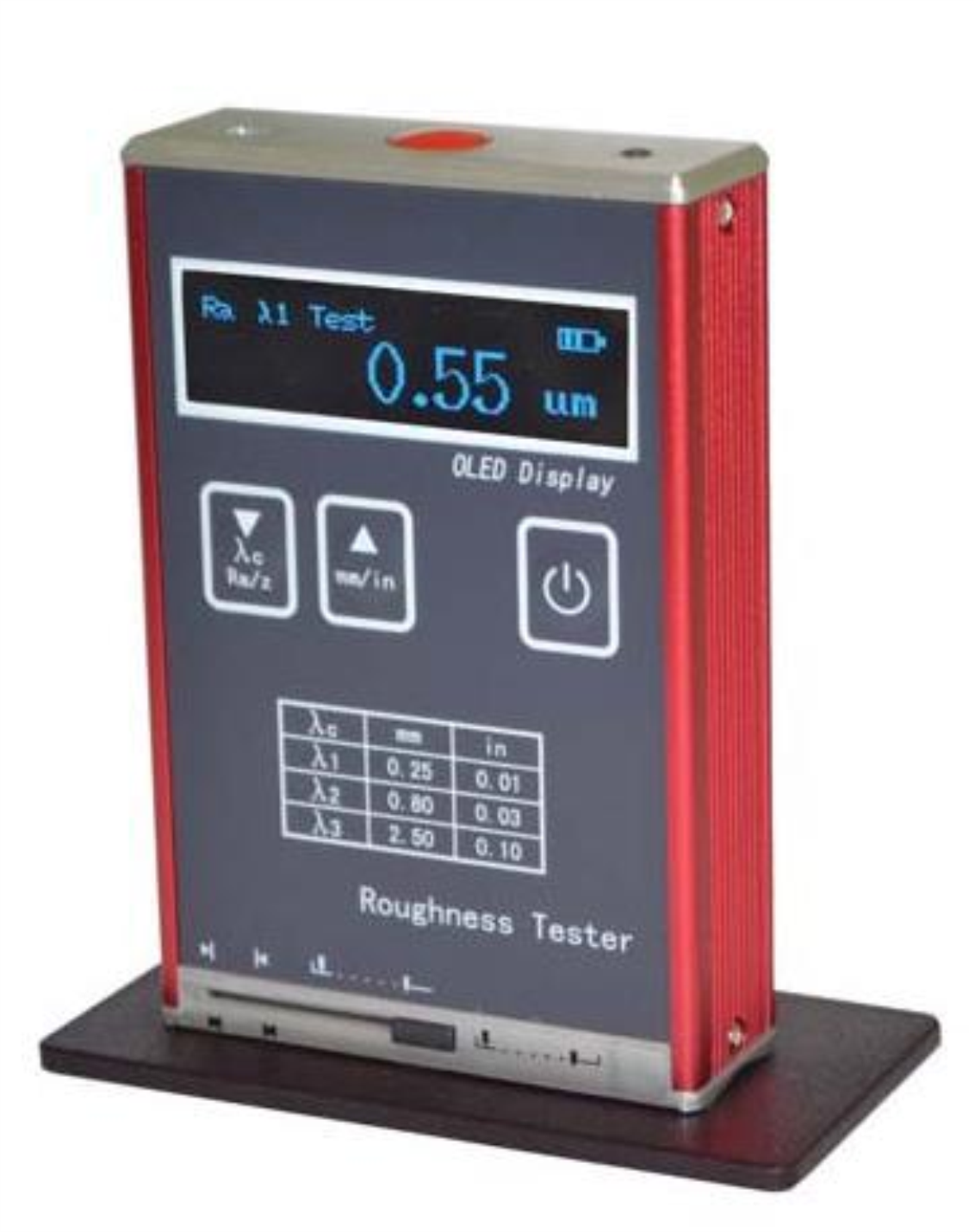

Main unit TMR120
Specimen Ra
Charger & USB cable
Instruction manual
Carrying case
